Regina modular barrier

Barriers and bus stops

Code 750007 | 750008

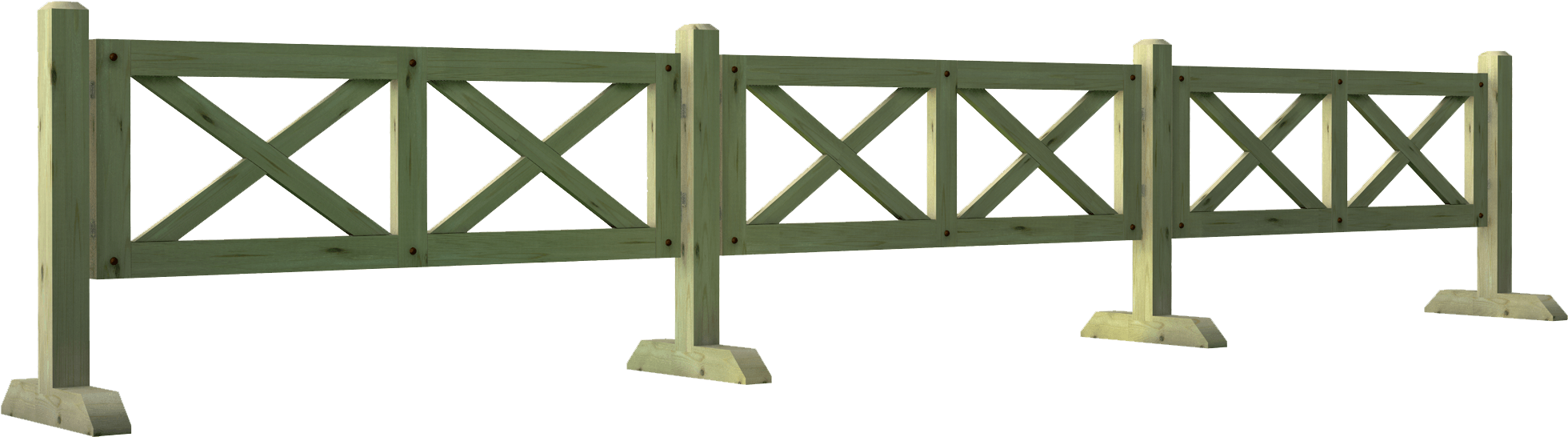

Modular barrier composed by vertical sterring columns with sections sized 75 x 75 mm and 105 cm height. Base with section sized 75 x 75 mm x 60 cm width.

Central module with 180 cm width and 60 cm height, composed of horizontal solid wood poles sized 45 x 90 mm and diagonal solid wood poles sized 27 x 65 mm.

Connection of the modules and sterring columns by means of articulated plates in galvanized steel that allow the modules to be joined even in a circular direction.

Per maggiori informazioni su prodotti e acquisto è possibile chiamare allo 0342 706008 - 710575 or send an email to info@industrialegnamitirano.it

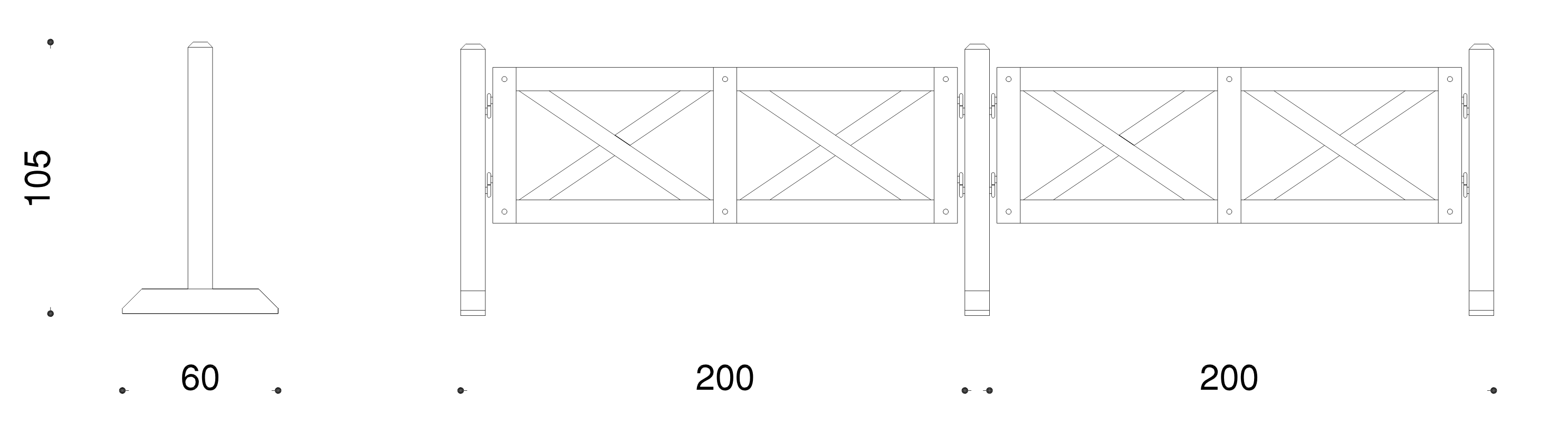

Sizes

200 x 60 x h 105 cm – modulo e piantoni

4,5 x 180 x h 70 cm – modulo

7,5 x 60 x h 105 cm – piantone

Pillars:

95 x 95 mm

Horizontal components:
